Taiwan Photon Source (TPS)


The first Taiwan synchrotron light source situated at the National Synchrotron Radiation Research Center (NSRRC) has been operational for twenty years. Scientists from nationwide and all over the world have been swarming in to conduct pioneering scientific research, with remarkable growth in both research quality and quantity, leveled up to world standard.

However, in order to cope with the immense competition in the international scientific arena, and the rapid development of the world synchrotron light sources, the insufficient brightness of the present Taiwan Light Source (TLS) in hard x-ray region, near consumption of all the TLS beam ports, the increasing demand for even brighter synchrotron X-ray source for top-notch research as strongly expressed in the users meeting in the past five years, and also at the crucial moment of the government's grand plan of promoting genomic medicine, biology and nano technology in the country, the former SRRC Board in its Forty-First Meeting in February 2001, had suggested to study the feasibility of building another synchrotron light source with higher electron energy.

Through years of surveys and studies, in response to the critical need for a highly brilliant synchrotron x-ray source for multidisciplinary experimental research in Taiwan , the reorganized NSRRC, in its July Board of Trustees Meeting in 2004, had come up with a decision to propose to the government to construct a Taiwan Photon Source (TPS) and its multidisciplinary experimental facilities. At the end of 2004, near 1000 letters were sent out to researchers and professionals throughout the country inviting their opinion on said plan. In January 2005, said proposal was submitted in the Seventh National Science and Technology Meeting, the feasibility study of building a Taiwan Photon Source was placed as one of the important conclusions in the final report of the Meeting.

In addition to the prompt measures taken in conducting the TPS conceptual design and several visits made for enquiries and consultation at home and abroad, an International Forum on Low-Emittance Intermediate-Energy Synchrotron Light Sources* was held to discuss the design of low-emittance intermediate-energy light sources and new promising scientific research opportunities at NSRRC, followed by five open discussions on new scientific research opportunities and six presentations on the TPS Construction Plan* that took place nationwide with enthusiastic and invaluable feedback. A feasibility study report on the construction of the Taiwan Photon Source (TPS) was completed indicating NSRRC's technical capability to build at its present site in seven years a 3~3.3 GeV electron energy, 518 meter circumference, low-emittance synchrotron storage ring which will offer one of the world's brightest synchrotron x-ray sources, provide cutting-edge experimental facilities and novel multidisciplinary scientific research opportunities, enhance world-class academic research, as well as create Taiwan's scientific research marvels in the twenty-first century.

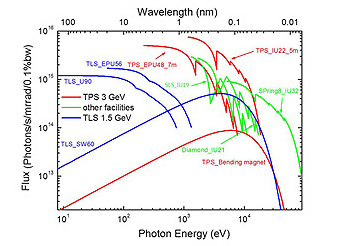

Flux of TPS
Emittance vs. Circumference

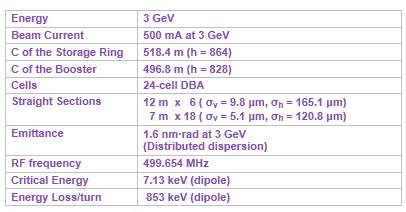

Parameters of TPS Synchrotron Facility
Brightness of Synchrotron Light Sources

Through many great efforts, the TPS had the ground-breaking ceremony for the civil construction of TPS on February 7, 2010. The new storage ring will use a 24-cell DBA lattice and will have 24 straight sections for insertion devices, six of them 12 m-long and 18 of them 7 m-long. It will be a combined-function magnets lattice structure with 10 nm rad emittance and will be located in the inner tunnel of the TPS storage ring. The total floor area of the TPS facility will amount to 53000 m2. The light source and its experimental facilities will be open to the academic and scientific communities to conduct advanced research in 2016.

The First Initial Phase will Build 7 Beamlines on TPS

Protein microcrystallography beamline

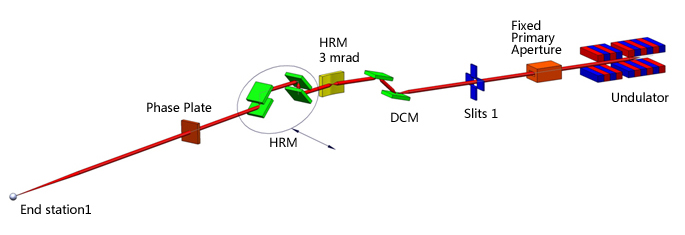

Temporally coherent X-ray diffraction beamline

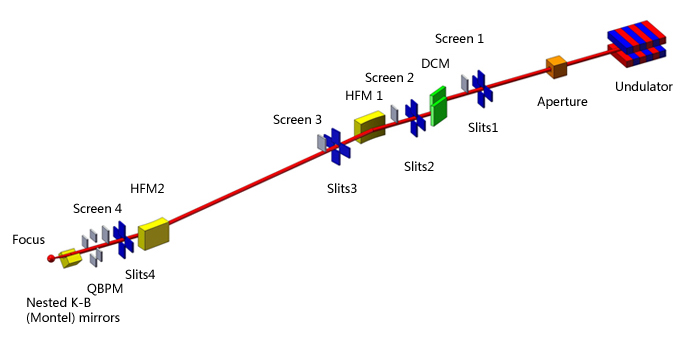

X-ray nanodiffraction beamline
X-ray nanoprobe beamline

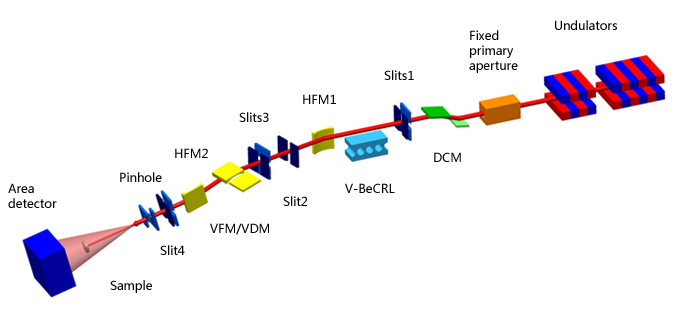

Coherent X-ray scattering beamline

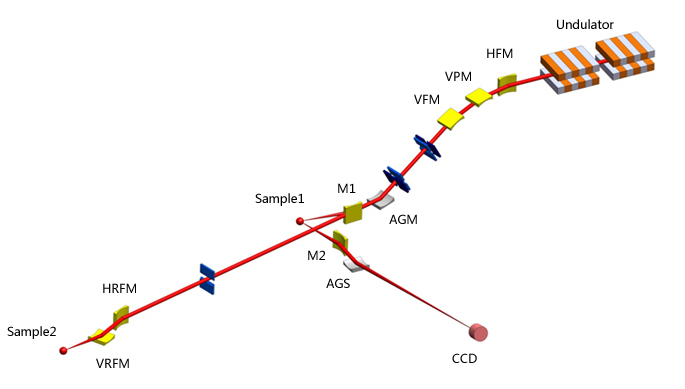

Soft X-ray scattering beamline

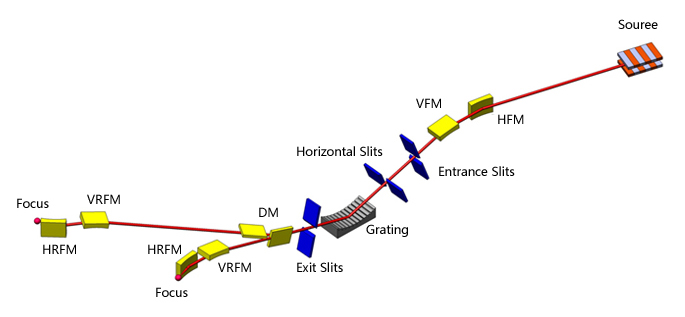

Submicron soft X-ray spectroscopy beamline

After Taiwan Photon Source (TPS) is completed, a bright source of X-rays will be provided to generate an exhilarating vision of our country’s scientific and technological developments.

  • TPS will become one of the brightest synchrotron light sources in the world, implement an advanced and interdisciplinary experimental facility, and occupy a leading position in the international community.
  • TPS will be open to innovative experimental techniques and will expand fields of scientific research, especially in biomedicine and nanoscience technologies, to drive Taiwan’s academic research to the ultimate standards.
  • TPS will assist high-technology industries in research and development of products and inoptimization of production that can in turn improve our country’s international competitiveness in a knowledge economy.
  • TPS will attract more international research groups to perform experiments, offer an opportunity to build an exclusive beamline by providing a beam port, and promote international cooperation to improve Taiwan’s international status.
  • TPS will provide a great incentive for internationally respected scientists to engage in enduring advanced interdisciplinary research in our country.
  • TPS will guide and foster students to devote in advanced research that can generate momentous scientific discoveries.
Dipole, Quadrupole, and Sextupole

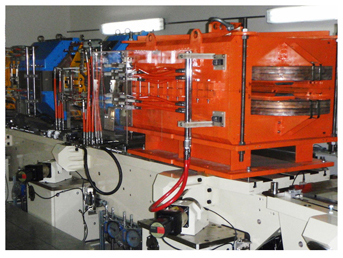

TPS Magnet System

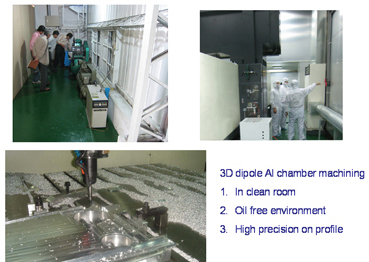

CNC oil-free machining for bending chamber

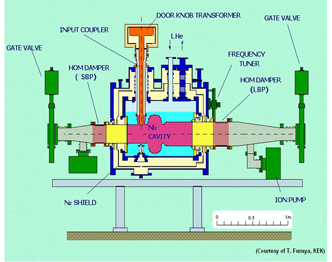

500-MHz Superconducting RF Module of KEKB-Design for TPS
