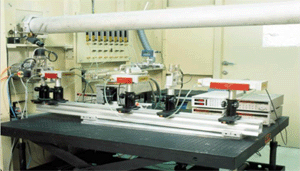

The end station has setups for performing X-ray absorption
experiments on various types of samples including liquids and solids. Of
particular research interest is the study of catalytic reaction using EXAFS

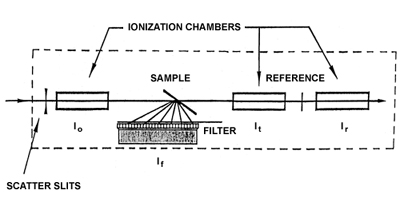

technique. The end station contains gas-ionization chambers with associated
electronics for transmission mode, a Lytle detector coupled with various
filters for fluorescence mode, and a total electron yield detector (operating
with helium flushing). Samples can be cooled down to 15 K with a Displex
closed-cycle cryostat or thermally treated up to 500°C in various gaseous
environments followed by measurements at liquid N2 temperature.
PEEM Station at EPU
PEEM Station at EPU
AUV image of NiFe ring with 0.5µm Line Width
AUV image of NiFe ring with 0.5µm Line Width
