| Electron Energy |
3~3.3 GeV
|
| Current |
400 mA at 3 GeV or 300 mA at 3.3 GeV (Top-up injection)
|
| SR Circumference |
518.4 m (h = 864 = 25·33 , dia.= 165.0 m)
|
| BR Circumference |
499.2 m (h = 832 = 26·13, dia.= 158.9 m)
|
| Lattice |
24-cell DBA
|
| Straight-section
|
| 11.72 m x 6
|
( σv = 12.7 μm,
|
σh = 172.3μm)
|
| 7 m x 18
|
( σv = 4.5 μm,
|
σh = 126.5 μm)
|
|
| Bending-section
|
12 |
| Emittance
|
1% |
| Coupling
|
1.7 nm·rad at 3 GeV (Distributed dispersion)
|
| RF Frequency
|
500 MHz
|
| RF Max. Voltage
|
6.4 MV (4 SRF cavities)
|
| RF Max. Power
|
720 kW (4 SRF cavities)
|

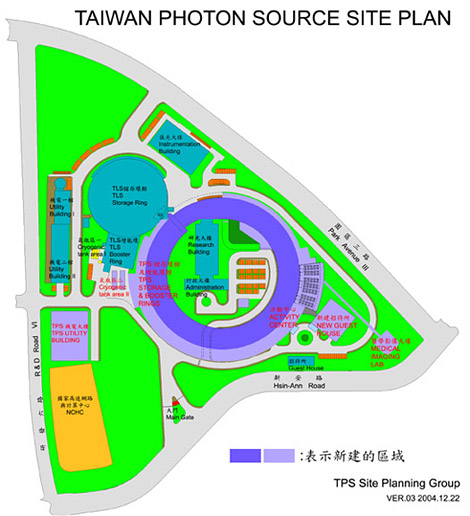

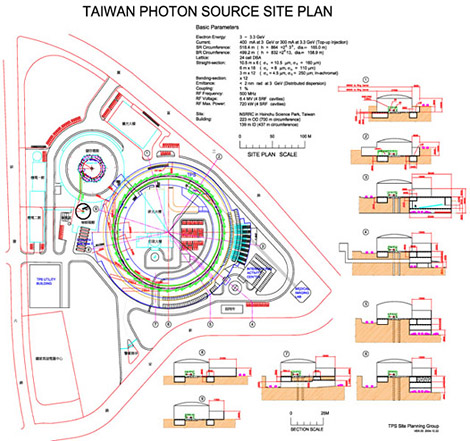

| Site
|
NSRRC in Hsinchu Science Park , Taiwan
|
| Building
|
| 223 m OD (700 m circumference)
|
| 139 m ID (437 m circumference)
|
|
